Connector & Adaptor
Shin Pao focuses on CATV, Head-end, Satellite TV and different fields of signal systems, and our high-quality connectors and adaptors conform to ISO 9001 quality specification of the countries in Europe and America; we provide connector, distributor, splitter, filter, isolator, attenuator and various signal transmission equipment and components on various RF transmission adaptors, such as F, BNC, SMA, ICE, etc. Due to our professional techniques and experiences of OEM/ODM, Shin Pao provides customized connector and adaptors in accordance with an individual's specifications or requirements. We are always able to achieve the maximal profit for both parties via our flexible production ability and perfect after-sales service.
We offer various F connectors for different purposes, including compression/ crimp / push on / PCB connectors, attenuators, high/low pass filters, locking terminators, adapter, and the high performance connectors for Set Top Box application.
CATV / Head-end / Satellite TV
F Series:
• RG59 F / RG6 F • Crimping • Economic
• RG59 F • RG6 F • Crimping
• RG59 Univ. F • RG6 Univ. F • Crimping
• RG11 F • Crimping • Attached Pin
• RG11 F • Separate Pin • W/O-Ring • Crimping
• RG11 • Feed Thru • AL • Water Proof
• RG59 F • RG6 F • Compression
• RG6 F • Compression • Brass • Water Proof
• RG6 F • Compression • Economic
• FF - PC Mount
• FF - 90 PC Mount
• RG59 F • RG6 F • Twist On
F Series for STB and Cable Modem:
 |  |
|---|---|
 |  |
 |
F81 Universal Coaxial F Splice Connector
Female to Female F-Type Adapter (2GHz & 3GHz):
Application
CATV Set Top Box
Head End Equipment Cable Modem
Cable Assembly Satellite TV
Specifications
Impedance 75 Ω
Frequency 0-3GHZ
Thread Type 3/8-32UNEF
Temperature Range (-40°C to +60°C)
Materials
Body, Metal Parts Brass/Zinc Alloy
Center Pin/ Male / Female : Brass,
Inner Contact Phosphor Bronze, Beryllium Copper
Insulator PTFE, PA9T, Delrin,PP or PBT
Connects 2 F-Pin cables, & extends the connection of a cable box, TV, satellite receiver, VCR, cable modem, off-air antenna or other digital audio/video component. Flat port ends on each side of the connector ensures moisture ingress protection & maximum rejection of the hum/static from RF & EM interference.
The 3GHz connectors are built with nickel-plated brass for lasting performance, while its low-profile size adds a mere 1.02" to your high-frequency cable run. These connectors accommodate most Male F-Type connectors & wall plates for indoor & outdoor settings alike. Each connector comes individually packaged to guard from scratches. They achieve pro-grade return loss & insertion loss specifications, when compared to conventional F81 connectors.
Specification:
F81-NW 2GHz
Insertion Loss (dB) Return Loss (dB)
DC-1000MHz <0.1(±0.05) DC-1000MHz >35 (±2)
1000-1500MHz <0.15 (±0.05) 1000-1500MHz >28 (±2)
1500-2000MHz <0.2 (±0.05) 1500-2000MHz >24 (±2)
SCTE 144 2007 Insertion Loss Pass
SCTE 04 1997 Return Loss >30 Db @ 1002 MHz
Specification:
F81-NW 3GHz
Application:
Broadband/CATV
Physical Characteristics Mechanical Characteristics EU RoHS
Connector Precision Splice Cable Retention Force 200g Yes
Body Zinc Temperature Rating -40°C to +70°C
Body Plating Nickel
Electrical Characteristics Insertion Loss (dB) Return Loss (dB)
Frequency 5MHz to 3GHz ≥-24 dB up to 3GHz ≤-0.20 dB up to 1GHz
Impedance 75ohms ≥-30 dB up to 1GHz ≤-0.25 dB up to 3GHz
Shielding Effectiveness (Min.) Band Flatness (Min.)
100dB 0.1 dB to 3GHz
Shielding Can + F Connector:
We offer a series of shielding Can + F Connector with high performance and high torque for Set Top Boxes and Cable Modems.
Applications
Set Top Box Cable Modem
Modem Cable Assembly
Satellite TV
Specifications
Impedance 75 Ω
Frequency 0-3GHZ
Thread Type 3/8-32UNEF
Temperature Range (-40°C to +60°C)
Materials
Shielding Can SPTE, Zinc-Copper-Nickel Alloy
Body, Metal Parts Brass / Zinc Alloy
Center Pin/ Male/Female : Brass,
Inner Contact Phosphor Bronze, Beryllium Copper
Insulator PTFE, PA9T, Delrin, PP or PBT
 |
|---|
• RG59/6 Universal Type • Crimping
• RG59 BNC Crimp Connector, 2PCS • Zinc
• RG6 BNC Crimp Connector , 2PCS • Zinc
• RG59 BNC Twist On Connector • Zinc
• RG59 BNC Crimp Connector, 3PCS • Zinc
• RG59/62 BNC Crimp Connector, 3PCS • Zinc
• MINI 8218 BNC Crimp Connector, 3PCS • Zinc
• RG59/62 BNC-F Crimp Connector, 2PCS
• Crimping • 3 PCS Style • Brass
• Crimping • 3 PCS style • Zinc
• Criming • 2 PCS Style • Brass
• Crimping • 2 PCS Style • Zinc Head
CATV / Head-end / Satellite TV
BNC Series:
We offer two impedance families with 50 & 75ohms and design for multiple PCB mount, edge mount, straight & R/A. It can be applied in PC/LAN, computer network testing & medical equipment, telescopic antenna, telecommunication, CATV, HDTV and security transmission systems.
 |  |
|---|---|
 |  |
 |
Applications
Computer Network Test Equipment
PC & LAN Process Control Device
Antenna Antenna Holder with BNC
(Male & Female)
Broadcast & CATV (75 Ω) For plenum and other cables
Specifications
Impedance 50 Ω / 75 Ω
Frequency 0-3GHZ
Temperature Range (-65°C to +165°C) (Teflon insulator)
Mating 2-stud bayonet lock,
provides quick mating and un-mating
Cable Folder Type Crimp , Clamp
Material
Body, Metal Parts Brass / Zinc Alloy
Center Pin/ Plug: Brass
Inner Contact Jack: Brass, Phosphor Bronze, Beryllium Copper
Insulator PTFE, POM, PA9T, TPX
O-ring or Gasket Silicone or NBR
Crimp Ferrule Copper alloy
• PAL Male Screw Male Type
• PAL Female Screw Type
• PAL CONNECTOR • PCIA-005U：RG59 • PCIA-009U：RG6
• PAL Connector • CIA-006U：RG59 • CIA-010U：RG6
CATV / Head-end / Satellite TV

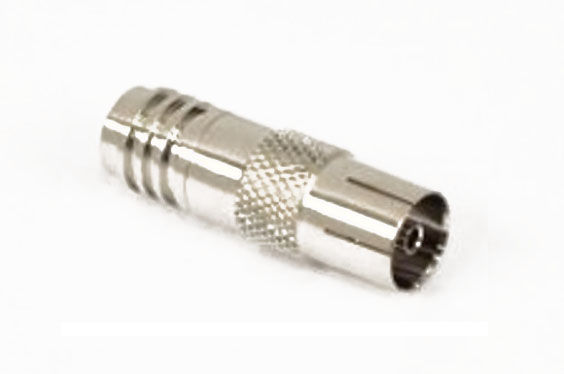

IEC Series:
IEC connectors are used in TV antenna installations in Europe. For an RF connector used in similar applications in other regions, see F connector. We offer various IEC connectors for different purposes, including compression/ crimp / PCB connectors, adapter.
Applications
CATV Set Top Boxes
Cable Assemblies Cable Modems
Specifications
Impedance 75 Ω
Frequency 0-1GHZ
Temperature Range (-40°C to +60°C)
Materials
Body, Metal Parts Brass Alloy
Center Pin/ Plug: Brass
Inner Contact Jack: Brass, Phosphor Bronze
Insulator PTFE, POM, PP
 |  |
|---|
Shielding Can + IEC Connector series:
We offer a series of Shielding Can + IEC Male / Female Connector with high performance and high torque for Set Top Boxes and Cable Modems.
 |
|---|
Applications
CATV Set Top Boxes
Cable Assemblies Cable Modems
Satellite TV
Specifications
Impedance 75 Ω
Frequency 0-3GHZ
Thread Type 3/8-32UNEF
Temperature Range (-40°C to +60°C)
Materials
Shielding Can SPTE, Zinc-Copper-Nickel Alloy
Body, Metal Parts Brass or Zinc Alloy
Center Pin/ Male / Female: Brass,
Inner Contact Phosphor Bronze, Beryllium Copper
Insulator PTFE, PA9T, Delrin, PP or PBT
DB Series:
• 59U F Connector
• 6U F Connector
• 59U BNC Connector • 6U BNC Connector
• 59U RCA Connector • 6U RCA Connector
DIN Series:
•1855A Cable • Compression • Brass
• 1694A Cable • Compression • Brass
We offer a seires of high performance S type connector/adaptor for Set Top Box, Cable Modem, Amplifier and Head End Equipment.
STB / Cable Modem
S series:
Applications
Set Top Box Cable Modem
Amplifier Head End Equipment
Specifications
Impedance 75 Ω
Frequency DC 0-3GHZ
Thread Type 3/8-32UNEF
Temperature Range (-40°C to +60°C)
Materials
Body, Metal Parts Brass / Zinc Alloy
Center Pin/ Male /Female : Brass,
Inner Contact Phosphor Bronze, Beryllium Copper
Insulator PTFE, PA9T, Delrin, PP or PBT
 |  |
|---|---|
 |
Wireless Lan
SMA series:
• 50 Ohms • 5dB -1 GHz • Brass Head W/Gold Plating
• Female to Female • 50 Ohms • 10 Ghz • Brass W/Gold Plating
We provide high performance microwave SMA & Reverse SMA connector up to 18GHz. It is applied for Telecommunication system, Mil/Aero, Vehicular equipment and instrumentation.
 |  |
|---|
Applications
Base station Wireless Lan
Telecom Cellular Phone
Vehicular Equipment GPS
Mil/Aero
Specifications
Impedance 50 Ω
Frequency 0-18GHZ
Thread Type 1/4-36 UNS
Temperature Range (-65°C to +165°C)
(Teflon Insulator)
Materials
Body, Metal Parts Brass / Stainless Steel
Center Pin/ Plug: Brass or Stainless Steel
Inner Contact Jack: Brass, Phosphor Bronze,
Beryllium Copper
Insulator PTFE, POM, PA9T, TPX
SMB series:
We provide high performance smaller version of SMA snap on coupling connector. It can be applied for Telecommunication system, Radio , Video, Automotive system, test & measurement equipment.
Applications
Base station Wireless Lan
Radio Broadband Radio Equipment
Automotive GPS
Test & Measurement Test equipment
Specifications
Impedance 50Ω / 75Ω
Frequency 0-4GHZ
Thread Type 1/4-36 UNS
Temperature Range (-65°C to +165°C)
(Teflon Insulator)
Materials
Body, Metal Parts Brass / Stainless Steel
Center Pin/ Plug: Brass or Stainless Steel
Inner Contact Jack: Brass, Phosphor Bronze,
Beryllium Copper
Insulator PTFE, POM, PA9T, TPX
 |  |
|---|---|
 |
MCX series:
We provide high performance with same size of inner contact as SMB and smaller O.D. of SMB snap on coupling connector. It can be applied for Telecommunication system, Radio , Video, Automotive system, head end equipment.
 |  |
|---|---|
 |  |
 |
Applications
Base station Wireless Lan
Radio Broadband Radio Equipment
Automotive GPS
Head End Equipment Test Equipment
Specifications
Impedance 50Ω / 75Ω
Frequency 0-6GHZ
Thread Type 1/4-36 UNS
Temperature Range (-65°C to +165°C)
(Teflon Insulator)
Materials
Body, Metal Parts Brass / Stainless Steel
Center Pin/ Plug: Brass or Stainless Steel
Inner Contact Jack: Brass, Phosphor Bronze,
Beryllium Copper
Insulator PTFE, POM, PA9T, TPX
CATV / Head-end / Satellite TV
Adaptor:
• HRL • F Male - F Female
• F Male - F Male Quick
• F Female - F Female • F-811: Casting Threads • F-81: Machined Threads
• 3/8"-32 Mouting Nut for Ports
• F Male - F Male, F71
• F Female - BNC Male
• F Female - RCA Male • Body W/ NI Plating • Machined Thread
• F Male - PAL Female
• PAL Male - F Male
• PAL Male - F Female
• PAL Female - F Female
• BNC Male - RCA Female
CATV / Head-end / Satellite TV
Locking Terminator:
• Brass Body • W/ or W/O Resistor
• Brass Body W/ Drift • W/ or W/O Resistor
• F59T Terminator • Brass Body • 2G R/L 12dB
• Aluminum / Brass Body • W/ or W/O Resistor
• F59T Terminator • Zinc Body
• 1/4W Resistor • 75ohm ± 20% (1GHz/2GHz)
CATV / Head-end / Satellite TV
Surge Arrester:
A surge arrester is a device to protect electrical equipment from over-voltage transients caused by lightning. Shin Pao offers various N-type/TNC-type...etc surge arresters for different purposes.
Applications
CATV Infrastructure
Base station
Specifications
Impedance 50Ω
Frequency 0-6GHZ
Temperature Range (-40°C to +60°C)
Materials
Body, Metal Parts Brass Alloy
Center Pin/ Plug: Brass
Inner Contact Jack: Brass, Phosphor Bronze
Insulator PTFE
 |
|---|
CATV / Head-end / Satellite TV
Dipole Antenna:
We provide a series of Dipole Antenna, which can be applied on wireless broadband access and WiFi application. Dipole antenna for transmitting and receiving a fixed frequency signal. We offer RPSMA, RPTNC, EP (I-PEX, HRS Compatible) connector for different application, it is also applied on Wide Band, Single & Dual Band.
 |
|---|
Applications
Base Station Wireless Lan
Wifi System Router
Specifications
Impedance 50Ω
Frequency 0-6GHZ
Mated Height 2.5mm
Connector Type R/A cable mounted (Plug)
Applicable Cable 0.81 / 1.13 / 1.32 / 1.37mm & RG-179
Temperature Range (-25°C to +65°C)
Materials
Body, Metal Parts Phosphor Bronze
Contact Insulator Phosphor Bronze / PBT
Plating Gold over Nickel
